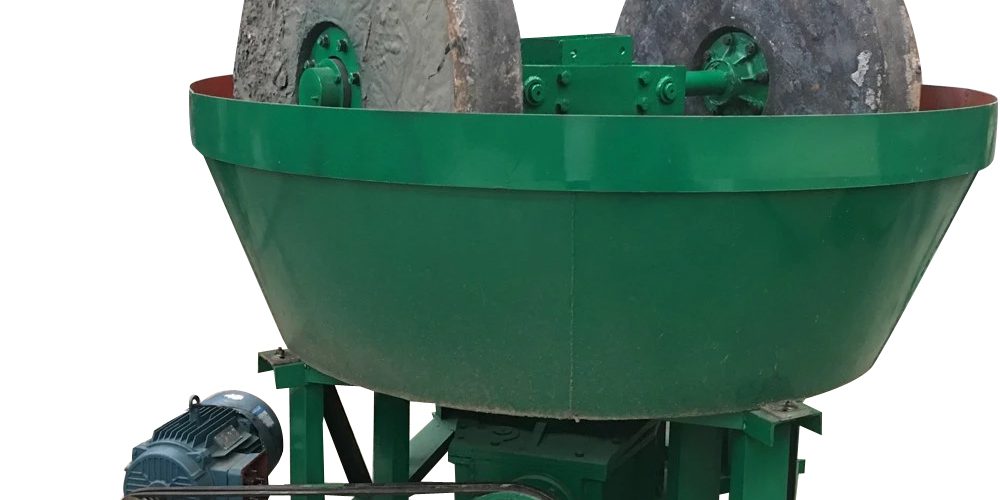

Wet pan mill (wet pan grinding mill) is also called wet grinding machine and gold grinding mill, it’s a modernized grinding machine, commonly used in the small and medium size concentrate factory. It is widely applied to the grinding and benefication of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.wet pan grinding mill, wet pan mill for gold selection
Technical Parameter of wet pan grinding mill :
| Model | Feed Size | Speed | Motor Power | Weight | Capacity | Specification |
| (mm) | (r/min) | (kw) | (t) | (t/h) | (mm) | |
| 1600A | <25 | 20-22 | 6-30 | 14.5 | 4-5 | 1600*400*200*500±20 |
| 1500A | <25 | 20-22 | 6-22 | 13.3 | 3-4 | 1500*350*200*460±20 |
| 1400A | <25 | 16-18 | 6-18.5 | 8.5 | 2-3 | 1400*250*150*350±20 |
| 1300A | <25 | 16-18 | 6-15 | 7.5 | 1.5-2 | 1300*250*150*350±20 |
| 1200A | <25 | 17-19 | 6-7.5 | 5.5 | 1-1.5 | 1200*220*80*270±20 |
| 1100A | <25 | 17-19 | 6-7.5 | 5 | 0.5-1 | 1100*200*80*250±20 |
Main features of wet pan grinding mill:
1. Professionally-designed, thus its technical data is reasonable. 2. Short grinding and mixing cycle, high efficiency. 3. Low noise and low consumption. The materials can be grinded and mixed uniformly. 4. Compact structure, easy to operate and maintenance.
